100 mm PIR Wall Sandwich Panels – First Grade – Smooth Finish

30.45 € netto | 37.45 € brutto (23% VAT)

1 in stock

Negocjuj cenę

Ze względu na wahania rynkowe, prosimy o każdorazową weryfikację dostępności i ceny produktu przed realizacją.

LENGTH (available in stock): 12 linear metres, with the option of cutting to the required dimensions. There is no need to purchase the entire panel. For cuts up to 9 metres, any leftover material is at our expense.

COLOUR (available in stock): RAL 9010 White / RAL 9010 White (both sides)

Other colours available on request.

SURFACE PROFILES: Various finishes available, including lined, smooth, micro-lined and carbon.

THICKNESS: 100 mm

GRADE: 1 (First Grade)

The price for a production order depends on the quantity ordered and the delivery location.

The price displayed on our website applies to 1 m² of a sandwich panel ordered directly from production. Lead times depend on the manufacturer’s current production schedule and capacity.

Szczegóły

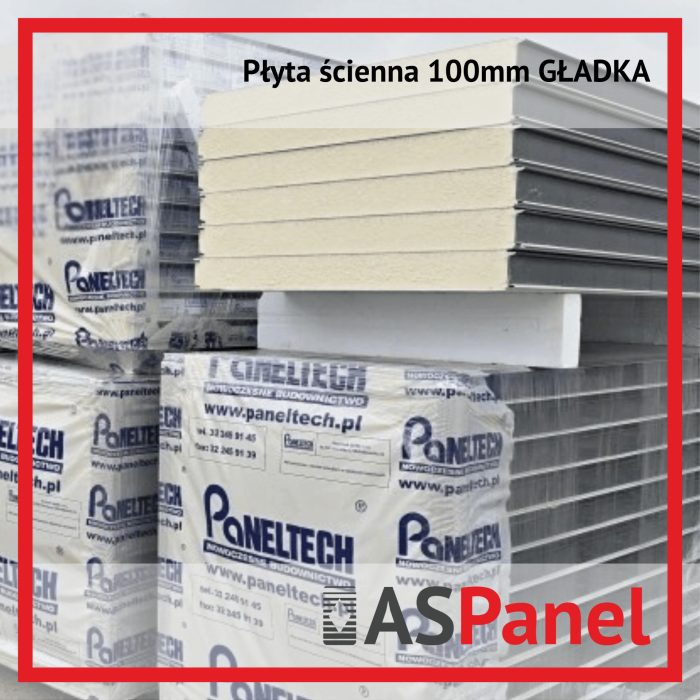

100 mm PIR Core Wall Sandwich Panels

100 mm PIR core sandwich panels are a modern and functional solution widely used in the construction industry. Thanks to their excellent thermal insulation properties, they are ideal for external walls, internal walls and partition walls in industrial, warehouse, commercial and residential buildings. The PIR foam core provides excellent thermal insulation, helping to minimise energy loss and reduce heating costs.

We offer panels from renowned manufacturers such as Paneltech, Balex Metal, VSS and Gorstal. Their quality is confirmed by compliance with relevant construction standards and excellent durability, even in demanding weather conditions. With panels available directly from our stock, we can fulfil orders quickly. For specific or non-standard requirements, panels can also be ordered directly from production.

Our 100 mm wall sandwich panels offer not only excellent insulation performance but also resistance to moisture and mould growth. PIR foam has self-extinguishing properties, contributing to improved fire safety in buildings. The outer layers of the panels are made of durable galvanised steel sheets, providing corrosion protection and maintaining an attractive appearance for many years.

Thanks to a precise panel joint system, installation is quick and straightforward, helping to reduce construction time and costs. The panels are available in various colours and lengths, allowing them to be adapted to the specific requirements of each project.

Our range includes a wide selection of panels available in stock, as well as made-to-order options. Contact us to learn more about current availability and choose the solution that best meets your requirements.

Technical Specifications of the Wall Sandwich Panel:

Weight [kg/m²]: 10.3
Thermal transmittance [W/m²K]: 0.59
Fire resistance: NPD
Reaction to fire: B-s1,d0
External fire performance: NRO (non-fire-spreading)
Panel joint: visible fixing system

Available Facings:

Internal:

Linear profile – available in stock
Smooth – available to order

External:

Linear profile – available to order
Micro-profiled – available in stock
Smooth – available to order

Available Coatings:

25 μm gloss polyester (SP) – RAL 9006 and RAL 8017 available in stock; other colours available to order
35 μm matt polyester (SP) – available to order
Cesar 55 semi-matt – available to order
PVC(F) “FoodSafe” – available to order
Aluzinc + Easyfilm – available to order
Stainless steel – available to order

Wall sandwich panels are available at our locations in Miszewko (near Gdańsk and Gdynia), Kazimierzowo (near Elbląg), and Kobylnica (near Słupsk). Call us to check current availability.

Made-to-order panels are available in lengths from 2 to 18 metres.
